    Columns Designed from Nanographenes


    Several layers of nanographenes stacked on top of each other: such functional elements could one day be used in solar cells. Würzburg chemists have paved the way for this.

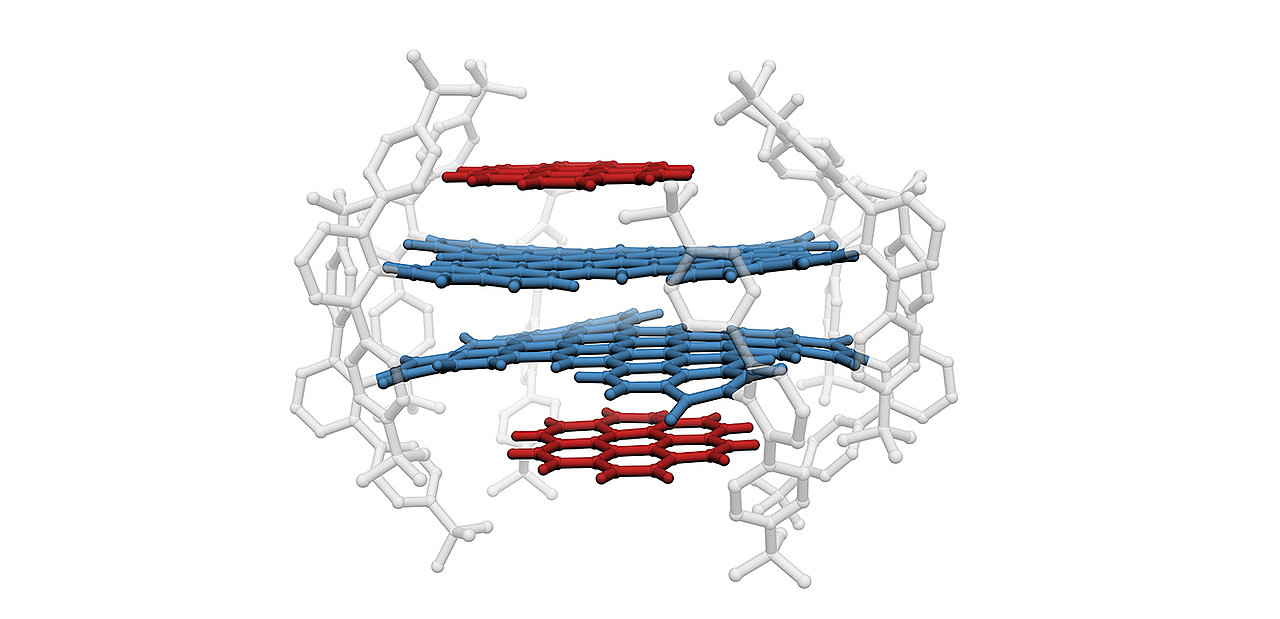

    Two nanographenes (blue) with bulky substituents (grey) have each attached a PAH (red) to give a quadruple dye stack. (Image: Arbeitsgruppe Würthner / Universität Würzburg)
    Two nanographenes (blue) with bulky substituents (grey) have each attached a PAH (red) to give a quadruple dye stack. (Image: Arbeitsgruppe Würthner / Universität Würzburg)

    Graphene is a carbon material that forms extremely thin layers. Because of its unusual properties, it is interesting for many technical applications. This also applies to polycyclic aromatic hydrocarbons (PAHs), which can be regarded as cut-outs of graphene. They are considered promising materials for organic photovoltaics or for field-effect transistors.

    Large, single-layer PAH molecules – often referred to as nanographenes – are well researched. In contrast, little is known about PAHs arranged into columnar multilayer stacks.

    Targeting multilayer nanographenes

    Now a new approach to these materials is opening up: researchers from Julius-Maximilians-Universität Würzburg (JMU) in Bavaria, Germany, present a sophisticated method for designing precisely defined, multilayered nanographenes in the journal Nature Chemistry.

    "In our lab, we have synthesised a custom-made nanographene that is equipped with two cavities on both sides of its planar core," says Professor Frank Würthner, head of the JMU Centre for Nanosystems Chemistry. The cavities are formed by the attachment of bulky substituents. As a result, the nanographene can hold a maximum of two smaller PAHs on its top and bottom sides.

    In their experiments, the Würzburg chemists observed that the nanographene formed two- and three-layer PAH complexes in solution. In addition, the team was able to isolate pairs of these complexes as solids, i.e. as four- and six-layer PAHs, as well as other multilayer compounds.

    The structural details of these products were  confirmed by crystallographer Dr. Kazutaka Shoyama; doctoral students Magnus Mahl and M.A. Niyas accomplished the synthesis, supramolecular binding studies and quantum-chemical calculations.

    Possible application in solar cells

    "Our concept for organising multilayer nanographenes should be applicable to the design of functional organic materials," explains Professor Würthner. He says the strategy of using multilayer nanographenes for charge carrier generation in solar cells is promising.

    This research was carried out at the Institute of Organic Chemistry and the Centre for Nanosystems Chemistry at JMU. The German Research Foundation (DFG) provided financial support for the work (funding code WU 317/20-2).


    Multilayer stacks of polycyclic aromatic hydrocarbons. Magnus Mahl, M.A. Niyas, Kazutaka Shoyama, Frank Würthner. Nature Chemistry, 07.02.2022, https://doi.org/10.1038/s41557-021-00861-5

    Contact person

    Prof. Dr. Frank Würthner, Institute of Organic Chemistry, University of Würzburg, wuerthner@uni-wuerzburg.de
